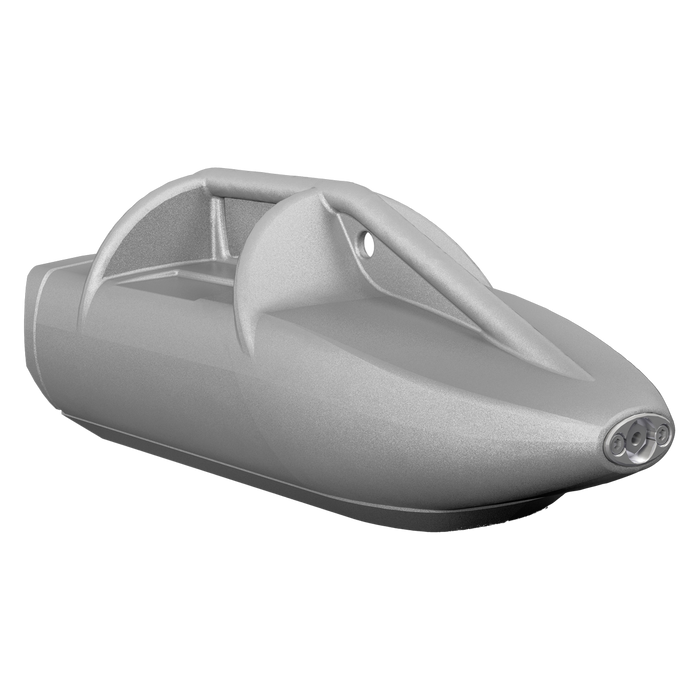

C-RAY® 400

$0.00
Article number 2-11860-C05-JS

Description

Customer that was using our JAWS® nozzle asked us to develop a bottom cleaning nozzle with the same technology and quality as the JAWS®. The result was the C-RAY®400 another Tier 3 nozzle.  The C-RAY®400 is made in quality stainless steel with the same water directing technology inside for the most effective debris moving power.

A bottom cleaning nozzle is to prefer when pipe is somewhat larger, and the debris is mainly in the bottom of the pipe. Specifically in larger sewer and storm lines.

C-RAY®400 operate effectively, depending on available water pump capacity, from 15”-60”. It is supplied with 8 rear jets and, if necessary, a front jet. Many bottom cleaners have more rear jets than this, but when we designed this nozzle based on the Jaws nozzle with its patented tube system, we can reduce the number of jets.  With our background as pipe cleaners and the research and development we have conducted, we know that it is better to have fewer jets with more power than many with less. This is easy mathematics calculation the diameter of each jet. Comparing a 2 mm jet with a 4 mm jet, the 4 mm jet is four times as thick and four times as strong. The C-RAY®400 is available with either hardened stainless steel or ceramic inserts.

Each C-RAY®400 is delivered with a quality harden stainless steel swivel, which purpose is to capture the movement of the hose and make sure the nozzle stays correctly positioned in pipe.

To learn more contact us at NozzTeq®.

Technical data

Connection 3/4″
For recyclers No
Front jets 1 x 1/8″
Length x diameter 22 x 8 x 8 inches
Max working pressure 3500 psi
Min water flow at 1450 psi 50 us gpm
Pipe dimension 16″ – 60″
Rear jets 8 x 1/8″
Weight 47 lbs.
Connection 3/4″
For recyclers No
Front jets 1 x 1/8″
Length x diameter 22 x 8 x 8 inches
Max working pressure 3500 psi
Min water flow at 1450 psi 50 us gpm
Pipe dimension 16″ – 60″
Rear jets 8 x 1/8″
Weight 46 lbs.
Connection 1″
For recyclers No
Front jets 1 x 1/8″
Length x diameter 22 x 8 x 8 inches
Max working pressure 3500 psi
Min water flow at 1450 psi 50 us gpm
Pipe dimension 16″ – 60″
Rear jets 8 x 1/8″
Weight 47 lbs.
Connection 1″
For recyclers No
Front jets 1 x 1/8″
Length x diameter 22 x 8 x 8 inches
Max working pressure 3500 psi
Min water flow at 1450 psi 50 us gpm
Pipe dimension 16″ – 60″
Rear jets 8 x 1/8″
Weight 47 lbs.
Connection 1 1/4″
For recyclers No
Front jets 1 x 1/8″
Length x diameter 22 x 8 x 8 inches
Max working pressure 3500 psi
Min water flow at 1450 psi 50 us gpm
Pipe dimension 16″ – 60″
Rear jets 8 x 1/8″
Weight 47 lbs.
Connection 1 1/4″
For recyclers No
Front jets 1 x 1/8″
Length x diameter 22 x 8 x 8 inches
Max working pressure 3500 psi
Min water flow at 1450 psi 50 us gpm
Pipe dimension 16″ – 60″
Rear jets 8 x 1/8″
Weight 47 lbs.
Connection 1-1/2″
For recyclers No
Front jets 1 x 1/8″
Length x diameter 22 x 8 x 8 inches
Max working pressure 3500 psi
Min water flow at 1450 psi 50 us gpm
Pipe dimension 16″ – 60″
Rear jets 8 x 1/8″
Weight 47 lbs.
Connection 1-1/2″
For recyclers No
Front jets 1 x 1/8″
Length x diameter 22 x 8 x 8 inches
Max working pressure 3500 psi
Min water flow at 1450 psi 50 us gpm
Pipe dimension 16″ – 60″
Rear jets 8 x 1/8″
Weight 47 lbs.
